| Produkt | Bestellbezeichnung | Abmessungen | Frequenz | CL | Temperatur Bereich | Sofort bestellen | |
|---|---|---|---|---|---|---|---|

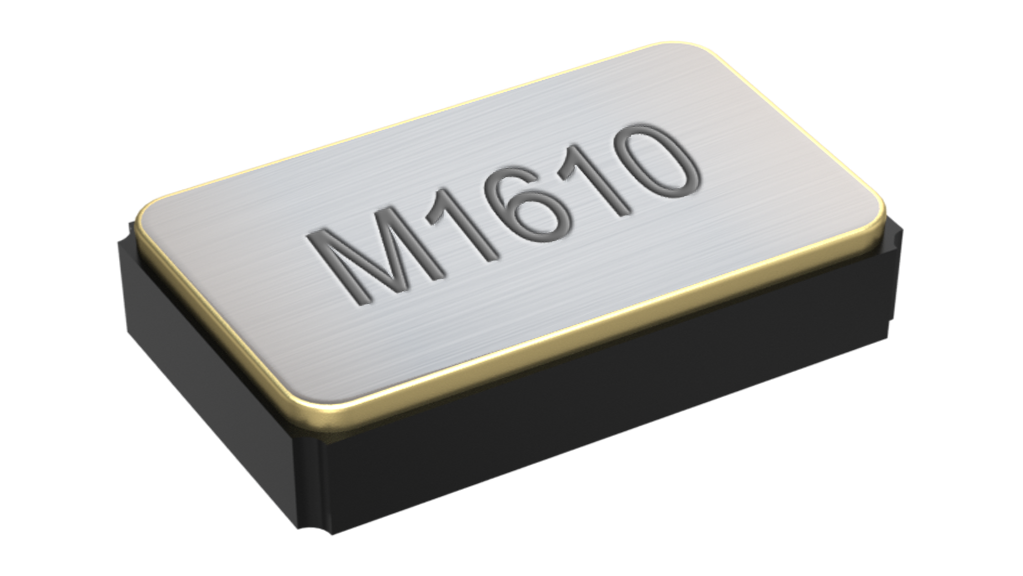

 | SMD kHz Quarz | M1610 32.768 kHz ±10 ppm 7pF (-40/+85°C) | 1.6x1.0/2pad | 32.768 kHz | 7 pF | -40/+85°C |  |
 | SMD kHz Quarz | M1610 32.768 kHz ±20 ppm 7pF (-40/+85°C) | 1.6x1.0/2pad | 32.768 kHz | 7 pF | -40/+85°C | |
 | SMD kHz Quarz | M1610 32.768 kHz ±20 ppm 6pF (-40/+85°C) | 1.6x1.0/2pad | 32.768 kHz | 6 pF | -40/+85°C | |
 | SMD kHz Quarz | M1610 32.768 kHz ±10 ppm 9pF (-40/+85°C) | 1.6x1.0/2pad | 32.768 kHz | 9 pF | -40/+85°C | |
 | SMD kHz Quarz | M1610 32.768 kHz ±10 ppm 6pF (-40/+85°C) | 1.6x1.0/2pad | 32.768 kHz | 6 pF | -40/+85°C | |
 | SMD kHz Quarz | M1610 32.768 kHz ±20 ppm 12.5pF (-40/+85°C) | 1.6x1.0/2pad | 32.768 kHz | 12.5 pF | -40/+85°C | |
 | SMD kHz Quarz | M1610 32.768 kHz ±20 ppm 9pF (-40/+85°C) | 1.6x1.0/2pad | 32.768 kHz | 9 pF | -40/+85°C | |
 | SMD kHz Quarz | M1610 32.768 kHz ±10 ppm 12.5pF (-40/+85°C) | 1.6x1.0/2pad | 32.768 kHz | 12.5 pF | -40/+85°C | |

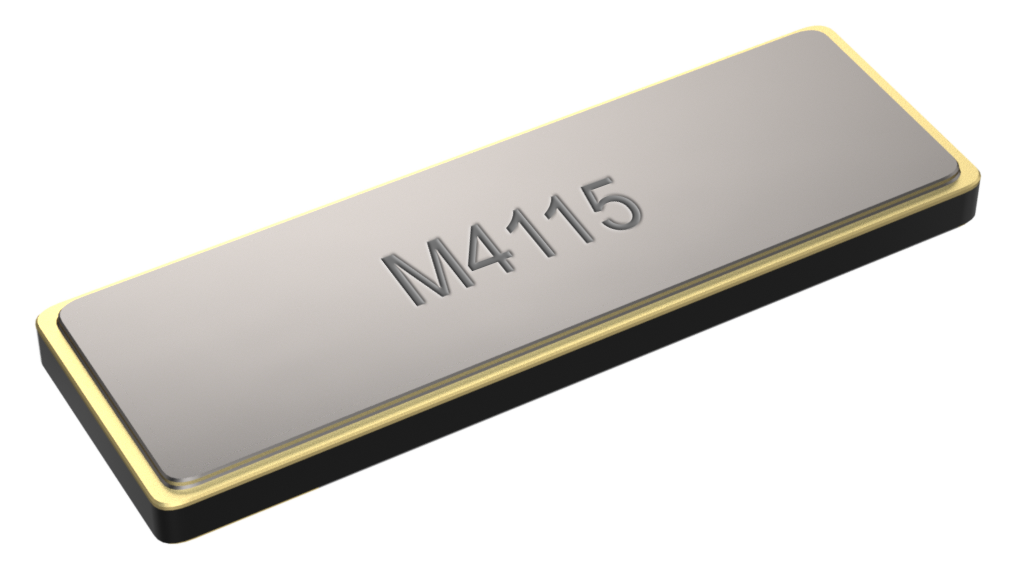

 | SMD kHz Quarz | M4115 32.768 kHz ±20 ppm 12.5pF (-40/+85°C) | 4.1x1.5mm/2pad | 32.768 kHz | 12.5 pF | -40/+85°C | |

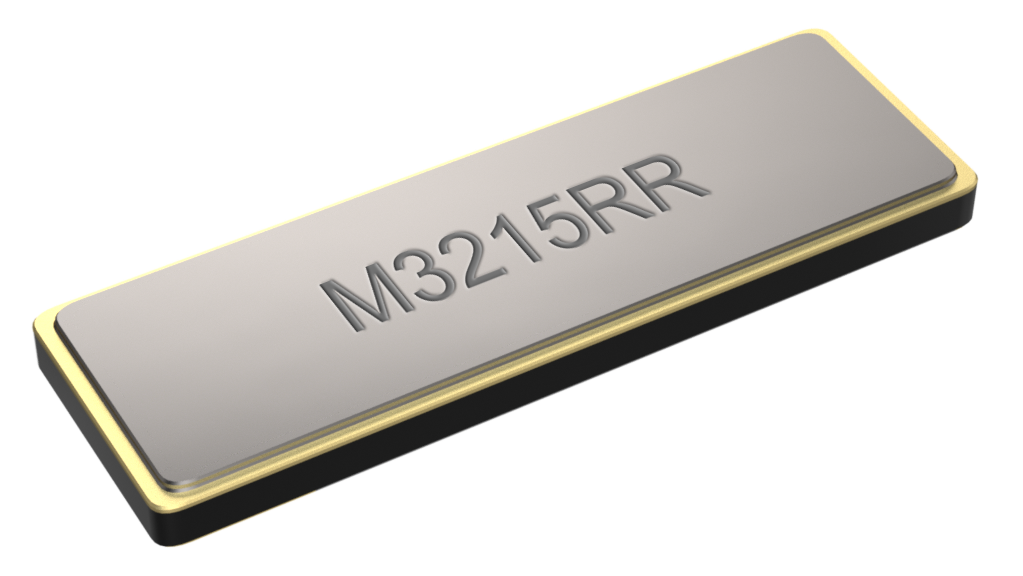

 | SMD kHz Quarz | M3215RR 32.768 kHz ±20 ppm 4pF (-40/+85°C) | 3.2x1.5mm/2pad | 32.768 kHz | 4 pF | -40/+85°C | |
 | SMD kHz Quarz | M3215RR 32.768 kHz ±20 ppm 9pF (-40/+85°C) | 3.2x1.5mm/2pad | 32.768 kHz | 9 pF | -40/+85°C | |
 | SMD kHz Quarz | M3215RR 32.768 kHz ±20 ppm 7pF (-40/+85°C) | 3.2x1.5mm/2pad | 32.768 kHz | 7 pF | -40/+85°C | |
 | SMD kHz Quarz | M3215RR 32.768 kHz ±20 ppm 6pF (-40/+85°C) | 3.2x1.5mm/2pad | 32.768 kHz | 6 pF | -40/+85°C | |
 | SMD kHz Quarz | M3215RR 32.768 KHZ ±20 PPM 12.5PF (-40/+85°C) | 3.2x1.5mm/2pad | 32.768 kHz | 12.5 pF | -40/+85°C | |

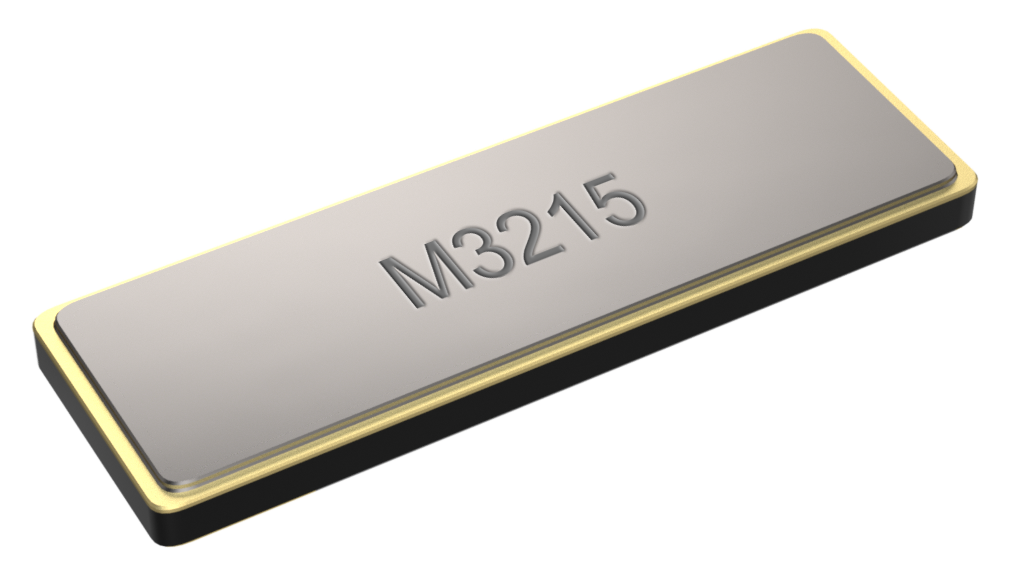

 | SMD kHz Quarz | M3215 32.768 kHz ±20 ppm 6pF (-40/+85°C) | 3.2x1.5mm/2pad | 32.768 kHz | 6 pF | -40/+85°C | |
 | SMD kHz Quarz | M3215 32.768 kHz ±20 ppm 9pF (-40/+85°C) | 3.2x1.5mm/2pad | 32.768 kHz | 9 pF | -40/+85°C | |

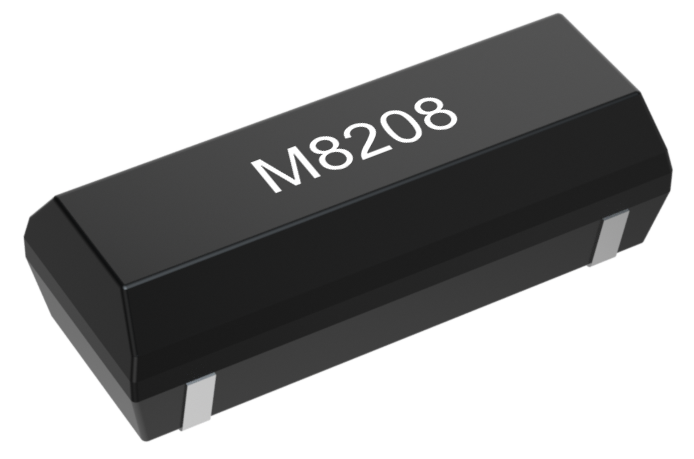

 | SMD kHz Quarz | M8208 32.768 kHz ±20 ppm 12.5pF (-40/+85°C) | 8.2x2.8mm/4pad | 32.768 kHz | 12.5 pF | -40/+85°C | |

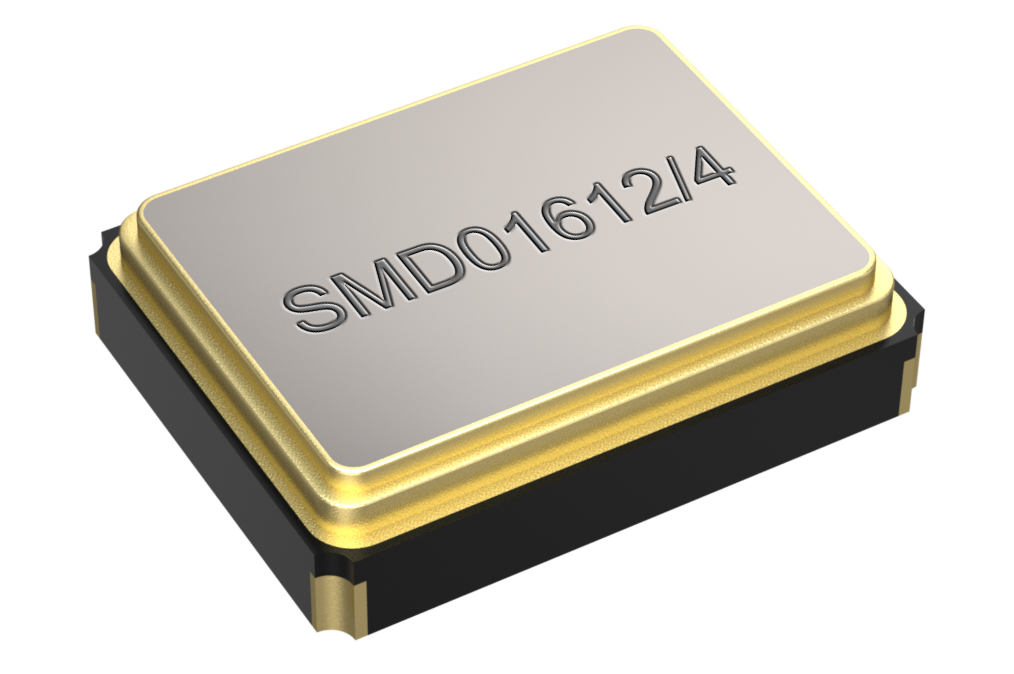

 | SMD MHz-Quarz | SMD01612/4 26.000 MHz 10/20/-40+85/8pF | 1.6x1.2mm/4pad | 26.000 MHz | 8 pF | -40/+85°C | |
 | SMD kHz Quarz | M8208 32.768 kHz ±20 ppm 6pF (-40/+85°C) | 8.2x2.8mm/4pad | 32.768 kHz | 6 pF | -40/+85°C | |

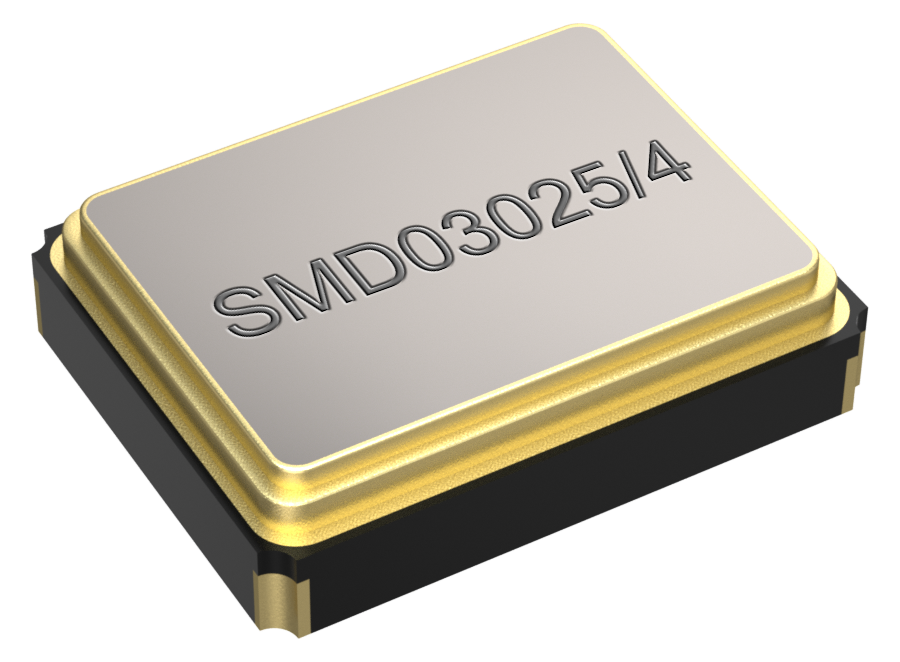

 | SMD MHz-Quarz | SMD03025/4 32.000 MHz 10/15/-40+85/10pF | 3.2x2.5mm/4pad | 25.000 MHz | 18 pF | -40/+85°C | |

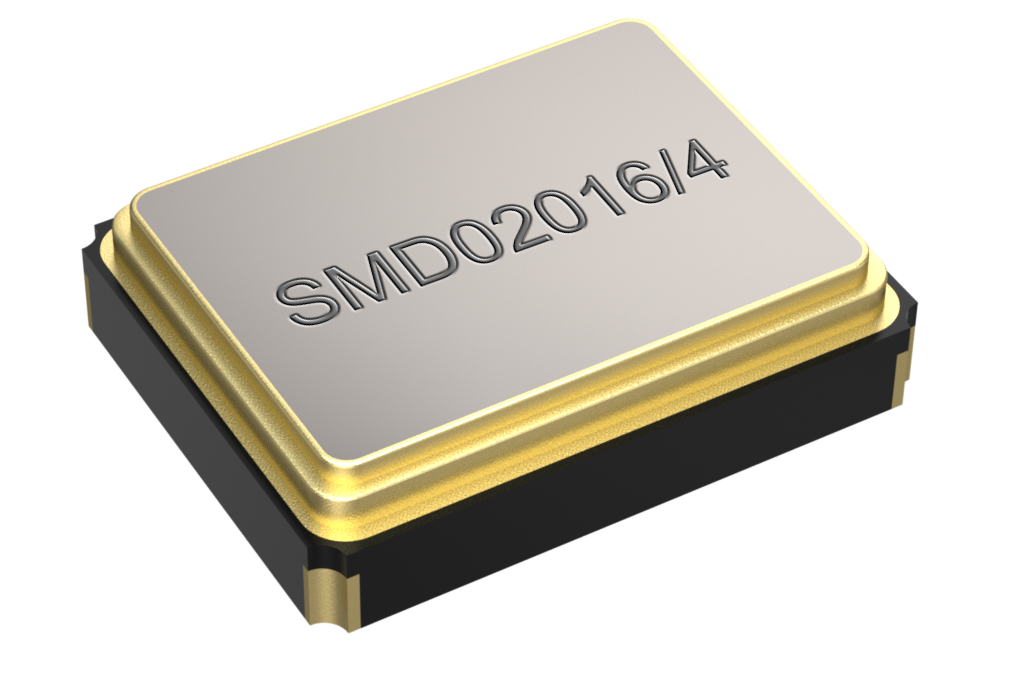

 | SMD MHz-Quarz | SMD02016/4 39.000 MHz 10/15/-40+85/10pF | 2.0x1.6mm/4pad | 39.000 MHz | 10 pF | -40/+85°C | |
 | SMD kHz Quarz | M3215 32.768 kHz ±20 ppm 12.5pF (-40/+85°C) | 3.2x1.5mm/2pad | 32.768 kHz | 12.5 pF | -40/+85°C | |
 | SMD MHz-Quarz | SMD02016/4 32.000 MHz 10/15/-40+85/10pF/40R | 2.0x1.6mm/4pad | 32.000 MHz | 10 pF | -40/+85°C | |
 | SMD MHz-Quarz | SMD02016/4 32.000 MHz 10/10/-20+70/10pF/40R | 2.0x1.6mm/4pad | 32.000 MHz | 10 pF | -20/+70°C | |
 | SMD MHz-Quarz | SMD03025/4 32.000 MHz 10/15/-40+85/10pF | 3.2x2.5mm/4pad | 32.000 MHz | 10 pF | -40/+85°C | |
 | SMD MHz-Quarz | SMD03025/4 52.000 MHz 10/10/-20+70/10pF | 3.2x2.5mm/4pad | 52.000 MHz | 10 pF | -20/+70°C | |
 | SMD MHz-Quarz | SMD03025/4 52.000 MHz 10/15/-40+85/10pF | 3.2x2.5mm/4pad | 52.000 MHz | 10 pF | -40/+85°C | |
 | SMD MHz-Quarz | SMD03025/4 32.000 MHz 10/10/-20+70/10pF | 3.2x2.5mm/4pad | 32.000 MHz | 10 pF | -20/+70°C | |
 | SMD MHz-Quarz | SMD03025/4 32.000 MHz 10/20/-40+85/10pF | 3.2x2.5mm/4pad | 32.000 MHz | 10 pF | -40/+85°C | |
 | SMD MHz-Quarz | SMD03025/4 52.000 MHz 10/20/-40+85/10pF | 3.2x2.5mm/4pad | 52.000 MHz | 10 pF | -40/+85°C | |
| SMD MHz-Quarz | SMD03025/4 48.000 MHz 10/20/-40+85/12pF | 3.2x2.5mm/4pad | 48.000 MHz | 12 pF | -40/+85°C | |
 | SMD MHz-Quarz | SMD03025/4 48.000 MHz 10/15/-40+85/12pF | 3.2x2.5mm/4pad | 48.000 MHz | 12 pF | -40/+85°C | |
 | SMD MHz-Quarz | SMD02016/4 50.000 MHz 10/15/-40+85/8pF | 2.0x1.6mm/4pad | 50.000 MHz | 8 pF | -40/+85°C | |
 | SMD MHz-Quarz | SMD02016/4 50.000 MHz 10/10/-20+70/8pF | 2.0x1.6mm/4pad | 50.000 MHz | 8 pF | -20/+70°C | |
 | SMD MHz-Quarz | SMD03025/4 32.000 MHz 10/20/-40+85/8pF | 3.2x2.5mm/4pad | 32.000 MHz | 8 pF | -40/+85°C | |
 | SMD MHz-Quarz | SMD03025/4 32.000 MHz 10/10/-20+70/8pF | 3.2x2.5mm/4pad | 32.000 MHz | 8 pF | -20/+70°C | |
 | SMD MHz-Quarz | SMD03025/4 32.000 MHz 10/15/-40+85/8pF | 3.2x2.5mm/4pad | 32.000 MHz | 8 pF | -40/+85°C | |
 | SMD MHz-Quarz | SMD02016/4 32.000 MHz 10/20/-40+85/8pF/40R | 2.0x1.6mm/4pad | 32.000 MHz | 8 pF | -40/+85°C | |
 | SMD MHz-Quarz | SMD02016/4 32.000 MHz 10/10/-20+70/8pF/40R | 2.0x1.6mm/4pad | 32.000 MHz | 8 pF | -20/+70°C | |
 | SMD MHz-Quarz | SMD02016/4 24.000 MHz 10/15/-40+85/8pF | 2.0x1.6mm/4pad | 24.000 MHz | 8 pF | -40/+85°C | |
 | SMD MHz-Quarz | SMD02016/4 24.000 MHz 10/10/-20+70/8pF | 2.0x1.6mm/4pad | 24.000 MHz | 8 pF | -20/+70°C | |
 | SMD MHz-Quarz | SMD03025/4 48.000 MHz 10/10/-20+70/12pF | 3.2x2.5mm/4pad | 48.000 MHz | 12 pF | -20/+70°C | |
 | SMD MHz-Quarz | SMD02016/4 24.000 MHz 10/10/-20+70/12pF | 2.0x1.6mm/4pad | 24.000 MHz | 12 pF | -20/+70°C | |
 | SMD MHz-Quarz | SMD02016/4 50.000 MHz 10/10/-20+70/12pF | 2.0x1.6mm/4pad | 50.000 MHz | 12 pF | -20/+70°C | |
 | SMD MHz-Quarz | SMD02016/4 32.000 MHz 10/15/-40+85/8pF/40R | 2.0x1.6mm/4pad | 32.000 MHz | 8 pF | -40/+85°C | |
